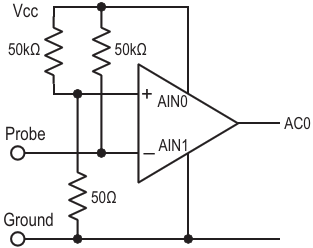

Equivalent circuit of the Tiny Continuity Tester using the ATtiny202 analogue comparator
| Authors | David Johnson-Davies |
| Main Document | Article «Tiny continuity tester» |
| Description | Figure 2 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Tiny continuity tester»
- Figure 2. Equivalent circuit of the Tiny Continuity Tester using the ATtiny202 analogue comparator
- Figure 3. Circuit of the ATtiny202-based Tiny Continuity Tester
- Figure 5. Serial UPDI programmer
