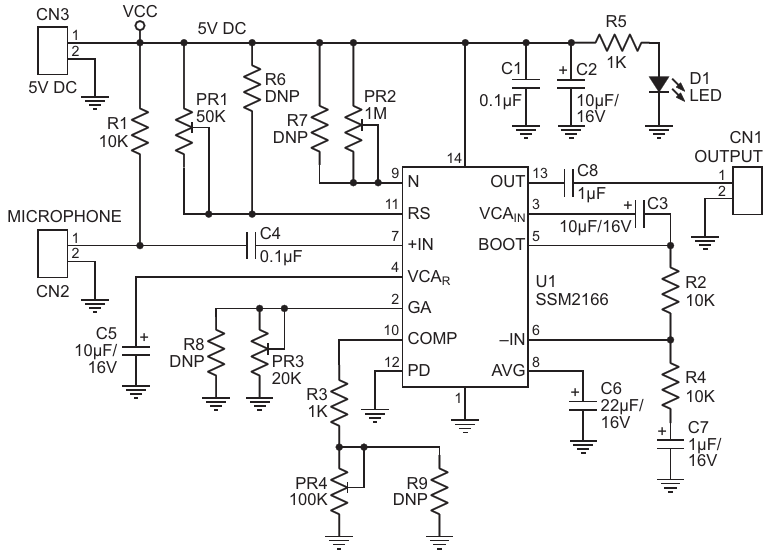

Schematic diagram of a microphone preamplifier
| Authors | Mike (mixos) |
| Main Document | Article «Hi-end microphone preamplifier with variable compression, noise gating and adjustable gain» |
| Description | Figure 1 |
| File Format / Size | PDF / 16 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Hi-end microphone preamplifier with variable compression, noise gating and adjustable gain»
- Figure 1. Schematic diagram of a microphone preamplifier
- Figure 2. The amplifier connection diagram
