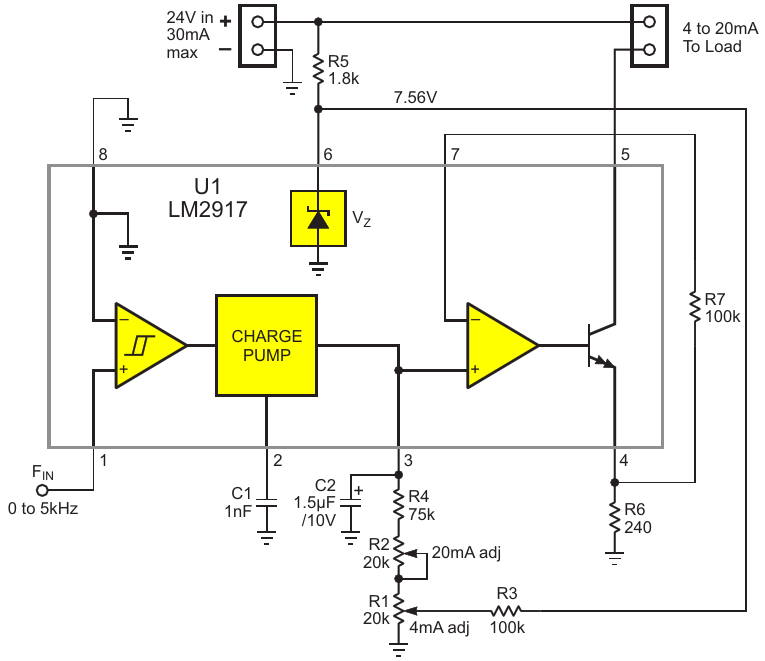

A 2917 with internal voltage reference converts a 0-5 kHz input to a 4-20 mA output. Single-pass calibration of both ends of the output span is available. First step: input 0 Hz and adjust R1 for 4 mA output. Second step: input 5 kHz and adjust R2 for 20
| Authors | Stephen Woodward |
| Main Document | Article «Painlessly convert Hz to 4-20mA current loop» |
| Description | Figure 1 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
