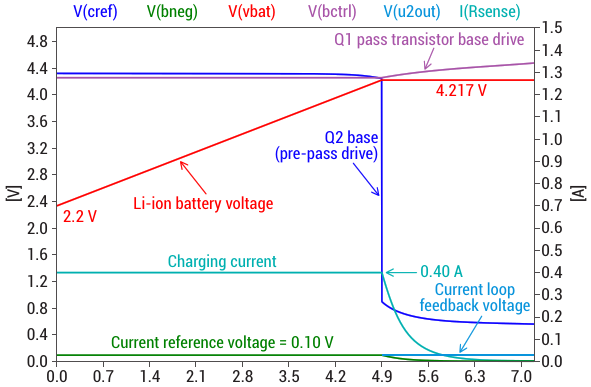

LTspice simulation of the key nodes and currents in the circuit. The measurements on the actual circuit closely match these plots
| Authors | Richard O. Ocaya |
| Main Document | Article «Build a practical 400 mA linear Li-ion charger with visible CC-CV behavior» |
| Description | Figure 3 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Build a practical 400 mA linear Li-ion charger with visible CC-CV behavior»
- Figure 1. Schematic of the dual-loop linear Li ion charger. The schematic shows the key nodes that are referenced and plotted in the LTSpice simulation. In practice, a 1N4007 diode for D2 also worked well
- Figure 3. LTspice simulation of the key nodes and currents in the circuit. The measurements on the actual circuit closely match these plots
