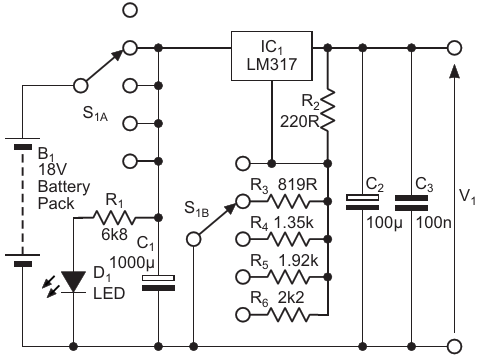

The power supply schematic with four selectable output voltages - 6, 9, 12, and 13.8 V
| Authors | Gavin Watkins |
| Main Document | Article «An off-line power supply» |
| Description | Figure 3 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
