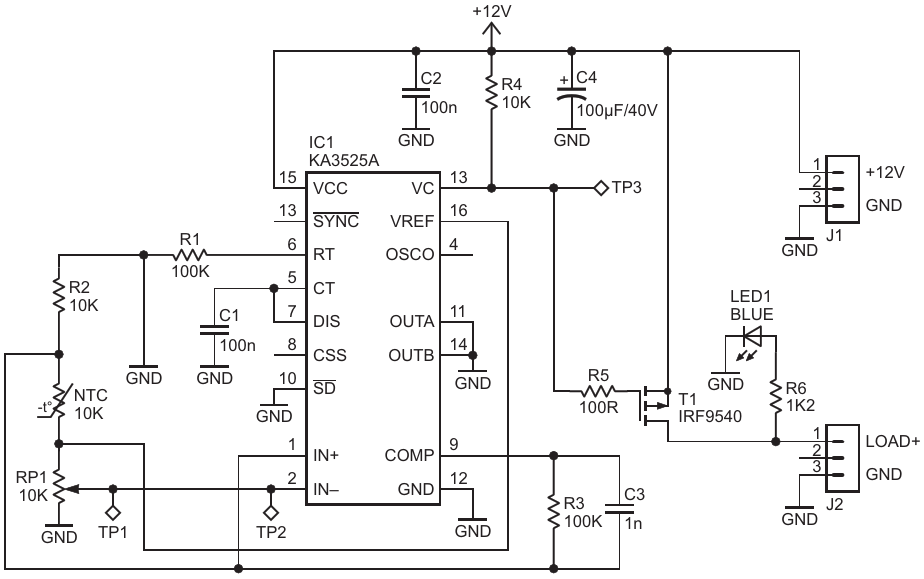

Schematic diagram of the PWM automatic heater controller
| Authors | T.K. Hareendran |
| Main Document | Article «PWM automatic heater controller» |
| Description | Figure 1 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «PWM automatic heater controller»
- Figure 1. Schematic diagram of the PWM automatic heater controller
- Figure 2. Typical NTC thermistor characteristics (10 kΩ @ 25 °C)
