NVE Introduces Low-Cost Isolated RS-485 Transceivers

NVE IL3085-3E IL3085E

NVE Corporation has introduced low-cost versions of its award-winning IsoLoop® isolated RS-485 transceivers.

World’s Smallest

NVE’s unique narrow-body versions, designated with the -3E suffix, are the world’s smallest isolated transceivers. The 0.15-inch wide 16-pin “dash 3” SOIC package is half the size of other isolators.

NVE - IL3085-3E, IL3085E

Best-in-Class Specifications

The new transceivers feature best-in-class speed and efficiency for a low-cost transceiver, including 4 Mbps data rate and 3 milliamp typical controller-side quiescent current.

The parts meet or exceed ANSI RS-485 and ISO 8482:1987(E) industry standards.

Rugged and Reliable

Designed for rugged industrial applications, IL3085 transceivers have a -40 to +85 degree Celsius temperature range, 15 kV bus ESD protection, and current limiting and thermal shutdown features. Receiver inputs feature a “fail-safe if open” design.

Parts are IEC 61010-2001 approved and UL 1577 recognized. Unlike optocouplers or other isolation technologies, IsoLoop isolators have indefinite life at high voltage.

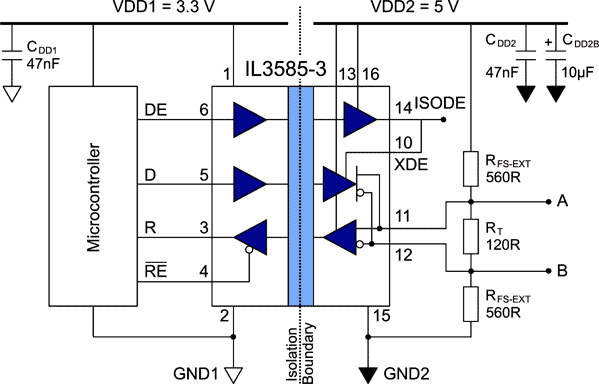

IL3085 typical connections

Typical connections.

Features

  • 40 Mbps data rate
  • 0.15" and 0.3" 16-pin SOIC packages
  • 3 V to 5 V power supplies
  • 20 ns propagation delay
  • 5 ns pulse skew
  • Low quiescent supply current
  • 44000 year barrier life
  • 2500 VRMS isolation per UL 1577
  • 20 kV/μs transient immunity
  • 15 kV bus ESD protection
  • Thermal shutdown protection
  • −40°C to +85°C temperature range

Available Now

The narrow-body IL3085-3E and wide-body IL3085E are both in stock for immediate delivery. Pricing is $2.60 each for 1,000 pieces for the IL3085-3E, and $3.25 for the IL3085E.
