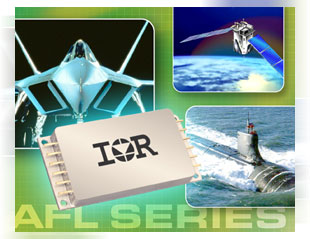

International Rectifier introduces two hermetically sealed, 120V input DC-DC converters that handle up to 84W per cubic inch power density, and deliver up to 80% efficiency. The new AFL12005S delivers 16A at 5V output, and the AFL1203R3S delivers 20A at 3.3V output. The AFL12005S handles up to 25% more power at 5V than the closest competing device. The AFL1203R3S is the industry's first hermetically sealed 120V input, 3.3V output DC-DC converter made available in a 3 ґ 1.5 ґ 0.38-inch package. The new converters are designed for military and other high reliability systems, including instrumentation and experiments aboard Space Station Freedom.
The AFL120 series converters are fully functional, self-contained DC-DC converters with an input range from 80V to 160V, characterized and rated over the full military temperature range of -55єC to +125°C. The new devices expand the IR high-reliability (hi-rel) line of single- and dual-output voltage DC-DC converters operating from 28V to 270V input with output power ranging from 66W to 120W.
These devices are available with one of four screening levels to satisfy a wide range of requirements. The CH grade is fully compliant to the requirements of MIL-PRF-38534 for class H and is tested to meet the complete group "A" test specification over the full military temperature range without output power de-rating.
The new converters incorporate proprietary magnetic pulse feedback technology, providing optimum dynamic line and load regulation response. This feedback system samples the output voltage at 550kHz, the nominal pulse width modulator fixed clock frequency.
Manufactured in a facility fully qualified to MIL-PRF-38534, the converters are available in four screening grades. Variations in electrical, mechanical and screening can be accommodated. Contact International Rectifier's Advanced Analog group for special requirements: 408-727-0500.
| Part Number Series | Package (L x W x H) |
Vin(V) | Iout (A) | Vout(V) | Pout @ Imax -55°C - +125°C |
Efficiency @ 25°C |
| AFL12005S** | 3x1.5x0.38 | 120 | 16 | 5.0 | 80 W | 80% |
| AFL1203R3S** | 3x1.5x0.38 | 120 | 20 | 3.3 | 66 W | 72% |
| **Suffixes indicate package style and screening grade; refer to data sheets for full details | ||||||
Pricing and Availability
The new devices are available immediately. Pricing begins at US $970 each for the AFL12005SX/ES or AFL1203R3SX/ES in 100-unit quantities.
