TIA with diode limiter

Authors	Mark Reisiger - Analog Devices
Main Document	Article «Guarded Limiters Improve High Impedance Sensor Dynamic Range»
Description	Figure 1
File Format / Size	PDF / 14 Kb
Document Language	English

Other Materials from the Main Document

Article «Guarded Limiters Improve High Impedance Sensor Dynamic Range»

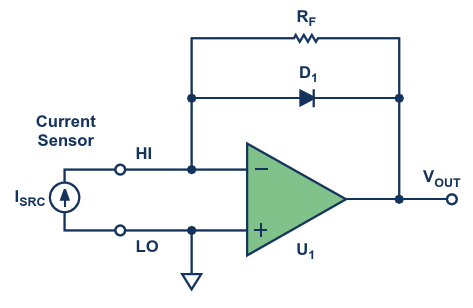

Figure 1. TIA with diode limiter
Figure 2. TIA with guarded diode limiter
Figure 3. TIA guarded ESD diode limiter
Figure 5. TIA transfer function for measured limiters
Figure 6. TIA transfer function error for measured limiters
