TIA transfer function error for measured limiters
| Authors | Mark Reisiger - Analog Devices |
| Main Document | Article «Guarded Limiters Improve High Impedance Sensor Dynamic Range» |

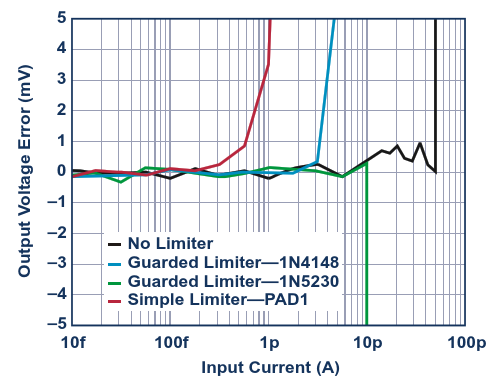

| Description | Figure 6 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
