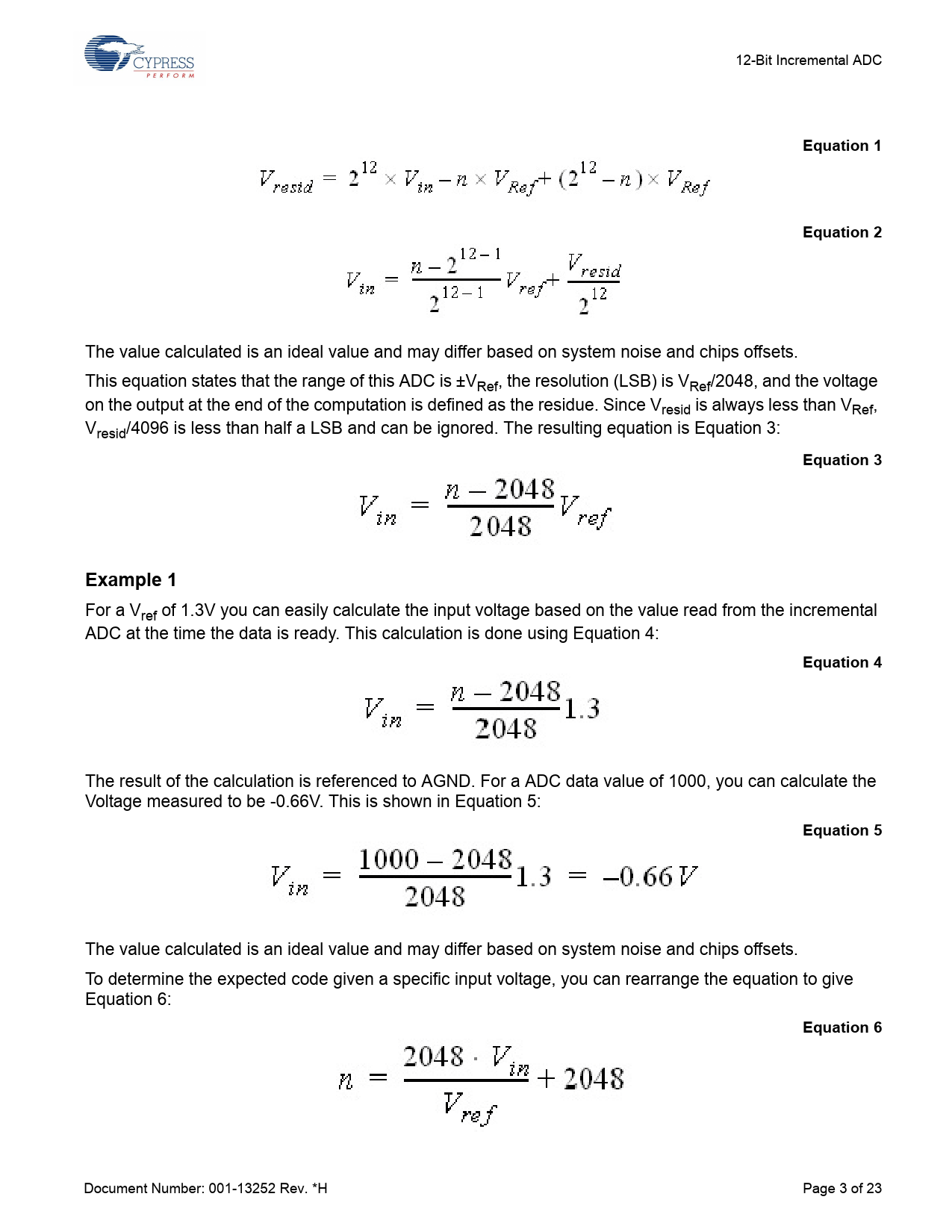

12-Bit Incremental ADC
Equation 1 Equation 2
The value calculated is an ideal value and may differ based on system noise and chips offsets. This equation states that the range of this ADC is ±VRef, the resolution (LSB) is VRef/2048, and the voltage on the output at the end of the computation is defined as the residue. Since Vresid is always less than VRef, Vresid/4096 is less than half a LSB and can be ignored. The resulting equation is Equation 3:
Equation 3 Example 1
For a Vref of 1.3V you can easily calculate the input voltage based on the value read from the incremental ADC at the time the data is ready. This calculation is done using Equation 4:
Equation 4
The result of the calculation is referenced to AGND. For a ADC data value of 1000, you can calculate the Voltage measured to be -0.66V. This is shown in Equation 5:
Equation 5
The value calculated is an ideal value and may differ based on system noise and chips offsets. To determine the expected code given a specific input voltage, you can rearrange the equation to give Equation 6:
Equation 6
