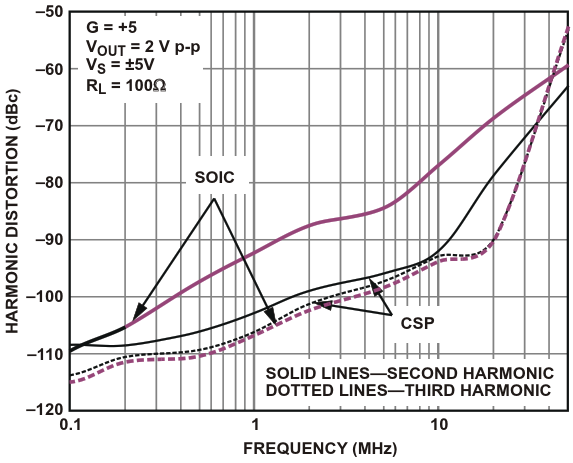

AD8099 distortion comparison - the same op amp in SOIC and LFCSP packages
| Authors | John Ardizzoni - Analog Dialogue |
| Main Document | Article «A Practical Guide to High-Speed Printed-Circuit-Board Layout. Part 2» |
| Description | Figure 12 |
| File Format / Size | PDF / 37 Kb |
| Document Language | English |
