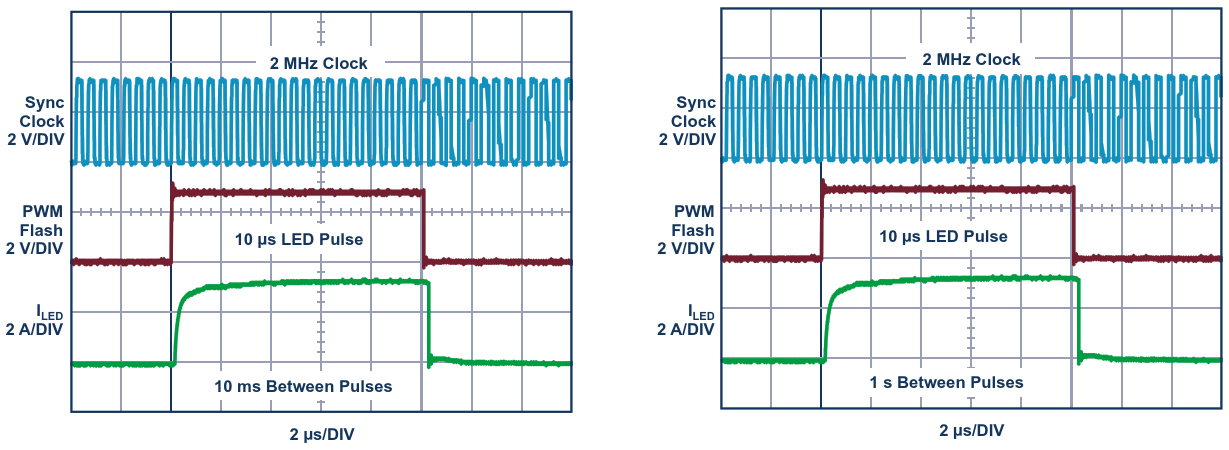

3 A camera flash waveform of Figure 1's parallel LED drivers looks the same regardless of the amount of PWM off-time. Waveforms show that a 10 µs pulse after (a) 10 ms and after (b) one second are the same. The LT3932 LED flash also looks the same a
| Authors | Keith Szolusha, Kyle Lawrence |
| Main Document | Article «LED Driver for High Power Machine Vision Flash» |
| Description | Figure 3 |
| File Format / Size | PDF / 729 Kb |
| Document Language | English |
