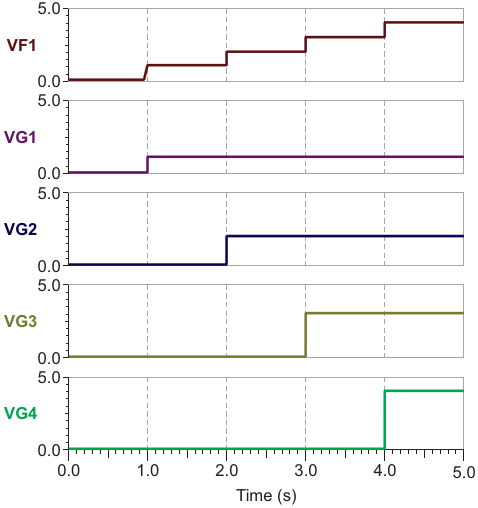

Simulation plot of the output of the 4-channel priority amplifier
| Authors | Jerry Steele |
| Main Document | Article «Multichannel priority amplifier» |
| Description | Figure 2 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Multichannel priority amplifier»
- Figure 1. Input Priority Amplifier provides an output from the most positive of four inputs. This circuit responds to positive inputs, but by reversing the diodes and re-configuring the power supplies, it can respond to negative inputs
- Figure 2. Simulation plot of the output of the 4-channel priority amplifier
