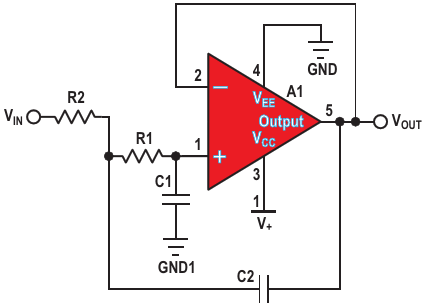

A Sallen-Key second-order, dual-supply, low-pass unity gain filter. The gain of this circuit is equal to 1 V/V

Authors	Bonnie Baker
Main Document	Article «Closer to real-world analog filters»
Description	Figure 3
File Format / Size	PDF / 12 Kb
Document Language	English

Other Materials from the Main Document

Article «Closer to real-world analog filters»

Figure 1. MFB second-order single-supply low-pass filter. The gain of this circuit is equal to -R₂/R₁; V_CM = V+/2
Figure 2. Sallen-Key second-order, single-supply filter. The gain of this circuit is 1 +R₂/R₁; V_CM = V+/2
Figure 3. A Sallen-Key second-order, dual-supply, low-pass unity gain filter. The gain of this circuit is equal to 1 V/V
