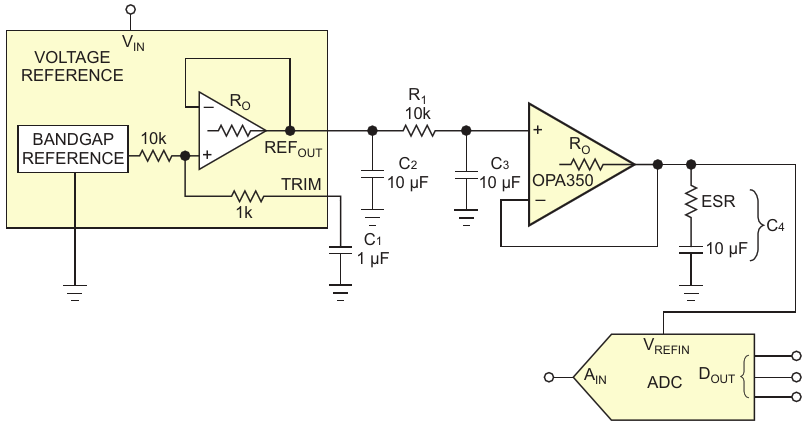

Although no universal approach exists for these voltage-reference designs, this circuit presents an interesting approach for converters with greater than 15 bits of resolution
| Authors | Bonnie Baker |
| Main Document | Article «Go for the gold with voltage-reference circuits» |
| Description | Figure 1 |
| File Format / Size | PDF / 11 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Go for the gold with voltage-reference circuits»
- Figure 1. Although no universal approach exists for these voltage-reference designs, this circuit presents an interesting approach for converters with greater than 15 bits of resolution
