The examined circuit (used commonly, for example, to convert a photodiode current into voltage) is a large band gain amplifier stage based on a JFET transistor (J113). This linear control function is achieved with this JFET in the feedback path of a non-i
| Authors | Alain Stas |
| Main Document | Article «Temperature compensation with a simple resistance temperature detector» |
| Description | Figure 1 |
| File Format / Size | PDF / 18 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Temperature compensation with a simple resistance temperature detector»

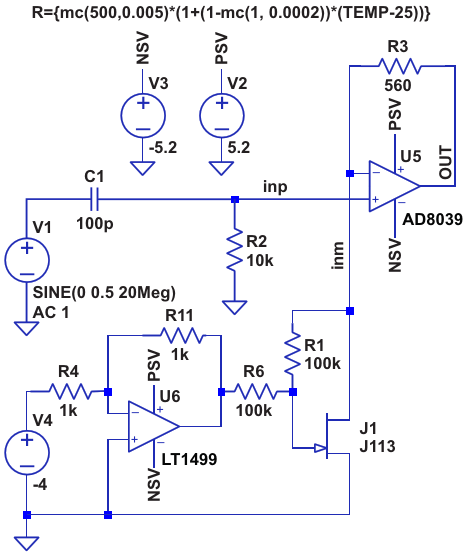

- Figure 1. The examined circuit (used commonly, for example, to convert a photodiode current into voltage) is a large band gain amplifier stage based on a JFET transistor (J113). This linear control function is achieved with this JFET in the feedback path of a non-i
- Figure 3. The diagram shows the original (left) and modified (right) versions of the large band gain amplifier stage circuit
