The dual-power-supply-voltage version of …
The dual-power-supply-voltage version of this positive peak detector requires only two active devices: a comparator and a dual operational amplifier
Authors
Anthony Smith
Main Document
Article «
Inexpensive Peak Detector Requires Few Components
»
Description
Figure 1
File Format / Size
PDF
/
24 Kb
Document Language
English
Download PDF
Other Materials from the Main Document
Article «
Inexpensive Peak Detector Requires Few Components
»

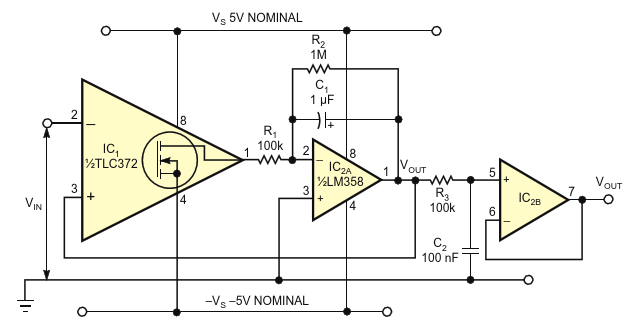

Figure 1. The dual-power-supply-voltage version of this positive peak detector requires only two active devices: a comparator and a dual operational amplifier
Figure 2. Plotting the difference between peak signal levels and output voltage for three peak levels illustrates the detector's frequency response
Figure 4. For operation from a single power supply, this version of the peak detector sets a reference voltage via resistors RA and RB
