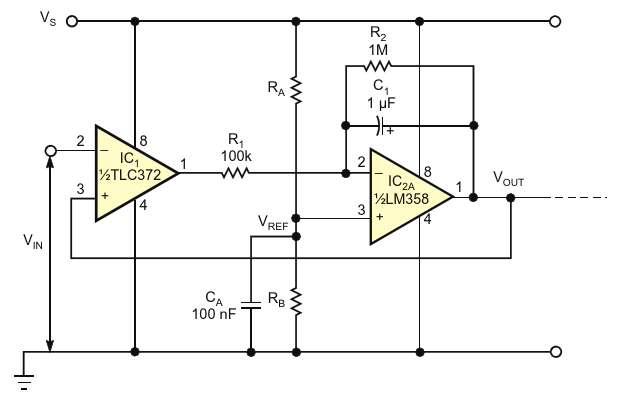

For operation from a single power supply, this version of the peak detector sets a reference voltage via resistors RA and RB
| Authors | Anthony Smith |
| Main Document | Article «Inexpensive Peak Detector Requires Few Components» |
| Description | Figure 4 |
| File Format / Size | PDF / 19 Kb |
| Document Language | English |
