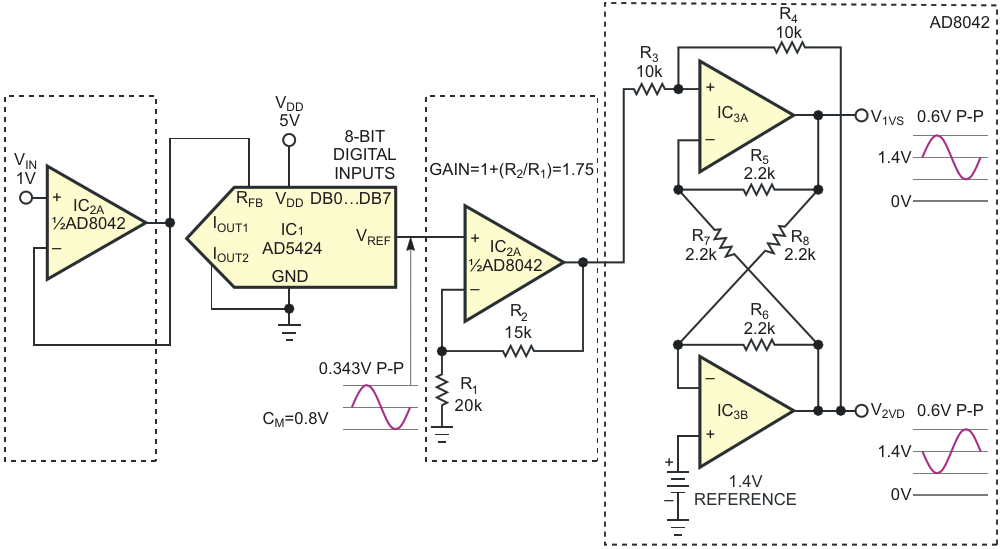

In this configuration, a positive reference voltage produces a positive output voltage
| Authors | Liam Riordan |
| Main Document | Article «Circuit converts DAC's outputs from single-ended to differential mode» |
| Description | Figure 2 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Circuit converts DAC's outputs from single-ended to differential mode»
- Figure 1. This basic circuit combines a current-output DAC, IC1, with a single-ended-to-differential op-amp stage - IC2, IC3A, and IC3B - to generate the desired outputs
- Figure 2. In this configuration, a positive reference voltage produces a positive output voltage
