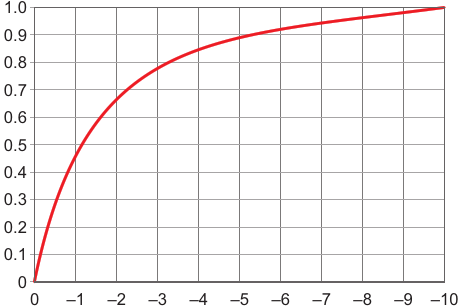

Graph of the PWM duty factor (0 to 1) versus V_OUT (0 V to -10 V). [PWM D = V_OUT/(0.875×V_OUT - 1.25)]

Authors	Stephen Woodward
Main Document	Article «0 V to -10 V, 1.5 A LM337 PWM power DAC»
Description	Figure 3
File Format / Size	PDF / 8 Kb
Document Language	English

Other Materials from the Main Document

Article «0 V to -10 V, 1.5 A LM337 PWM power DAC»

Figure 1. LM337 joins forces with 4053 CMOS switch to make a macho PWM DAC
Figure 2. Graph of V_OUT (0 V to -10 V) versus the PWM duty factor (0 to 1). [V_OUT = -1.25×D/(1 - 0.875×D)]
Figure 3. Graph of the PWM duty factor (0 to 1) versus V_OUT (0 V to -10 V). [PWM D = V_OUT/(0.875×V_OUT - 1.25)]
