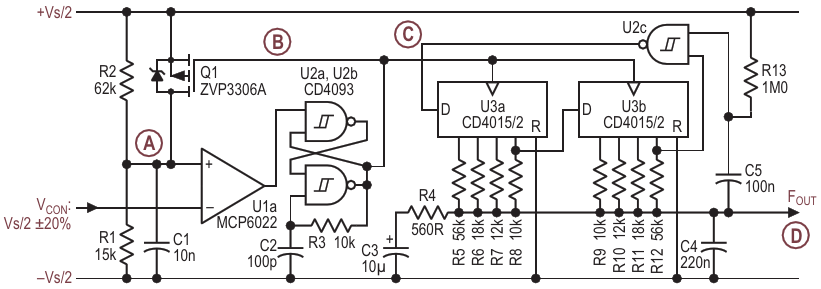

Here the oscillator runs 16 times faster than the output frequency. Dividing the pulse rate down using a twisted- ring counter with resistors on its 8 outputs gives a stepped approximation to a sine wave
| Authors | Nick Cornford |
| Main Document | Article «A pitch-linear VCO. Part 2 - Taking it further» |
| Description | Figure 3 |
| File Format / Size | PDF / 22 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «A pitch-linear VCO. Part 2 - Taking it further»
- Figure 1. A variant on Part 1's Figure 2, allowing operation with a supply of up to 20 V
- Figure 2. This all-discrete version (apart from the op-amps) uses a second section to produce an output having a duty cycle close to 50%
- Figure 3. Here the oscillator runs 16 times faster than the output frequency. Dividing the pulse rate down using a twisted- ring counter with resistors on its 8 outputs gives a stepped approximation to a sine wave
