5 V regulation with boost converter and FET

Authors	Tamara A. Papalias, Mike Wong
Main Document	Article «A novel approach to creating a high-efficiency, simple buck-boost converter»
Description	Figure 2
File Format / Size	PDF / 14 Kb
Document Language	English

Other Materials from the Main Document

Article «A novel approach to creating a high-efficiency, simple buck-boost converter»

Figure 1. Typical 5 V regulation with boost converter and LDO

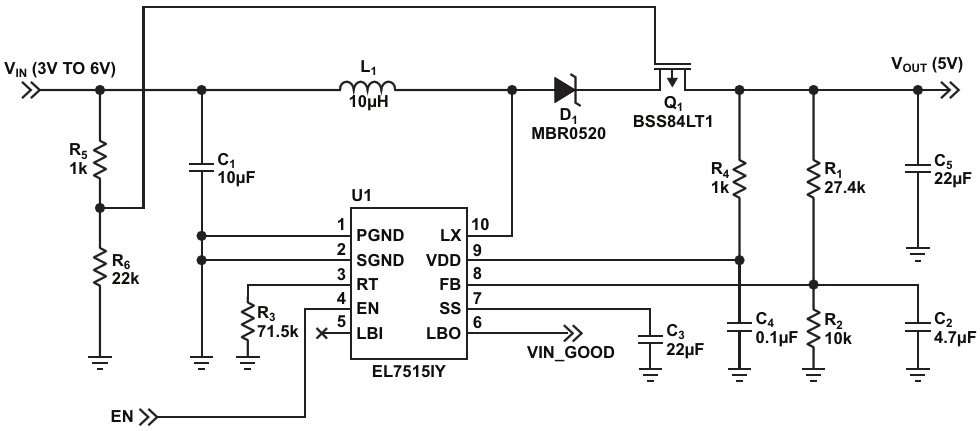

Figure 2. 5 V regulation with boost converter and FET
Figure 3. Efficiency of boost/LDO combo and boost/FET combo for V_IN = 3.3 V, V_OUT = 5 V
Figure 4. Efficiency of boost/LDO combo and boost/FET combo for V_IN = 5 V, V_OUT= 5 V
Figure 6. Load regulation of boost/FET combo
