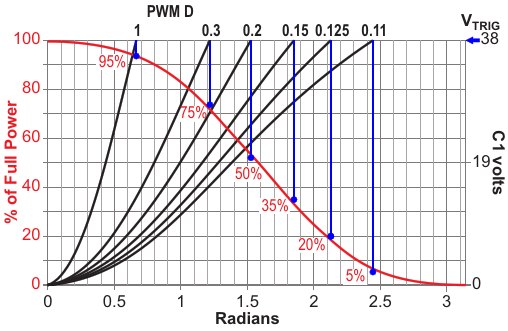

The (VPK×sin(r))2 power output versus the PWM D. The right axis is the voltage of the trigger capacitor (C1), the left axis is the fraction of the full output power versus trigger phase, and the x-axis is the AC phase in radians
