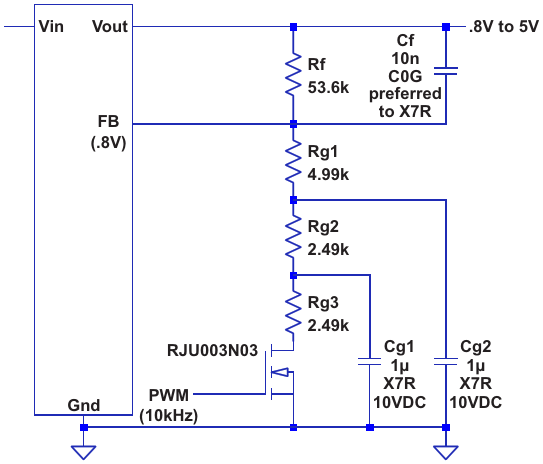

A specific instance of a PWM-controlled regulator with ripple suppression. Only a linear regulator is shown, but the adaptation for switcher operation entails only the addition of an inductor and a filter capacitor
| Authors | Christopher Paul |
| Main Document | Article «Improve PWM controller-induced ripple in voltage regulators» |
| Description | Figure 2 |
| File Format / Size | PDF / 11 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Improve PWM controller-induced ripple in voltage regulators»
- Figure 1. The configurations of common regulators and their feedback networks. A linear regulator is shown on the left and a switcher on the right
- Figure 2. A specific instance of a PWM-controlled regulator with ripple suppression. Only a linear regulator is shown, but the adaptation for switcher operation entails only the addition of an inductor and a filter capacitor
