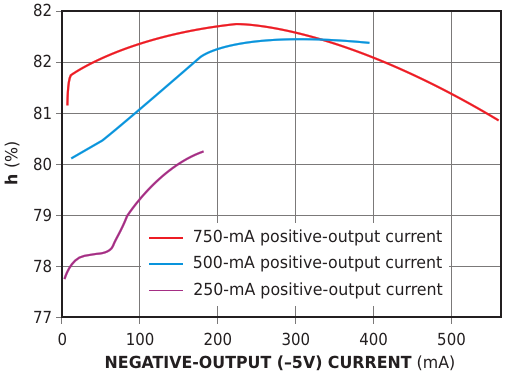

These curves represent efficiency figures for various positive and negative output currents
| Authors | Keith Szolusha |
| Main Document | Article «Buck regulator and two inductors make dual-polarity converter» |
| Description | Figure 2 |
| File Format / Size | PDF / 17 Kb |
| Document Language | English |
