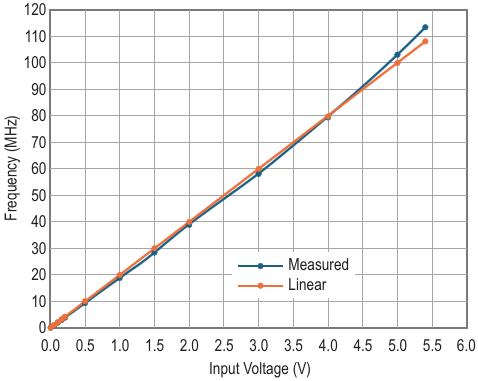

The frequency from 1.07 MHz to 103.0 MHz versus input voltage from 50 mV to 5.00 V
| Authors | Jim McLucas |
| Main Document | Article «My 100-MHz VFC - the hardware version» |
| Description | Figure 3 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
