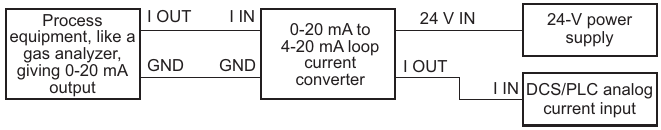

A block diagram that shows the connection of the current converter in process industries
| Authors | Jayapal Ramalingam |
| Main Document | Article «A 0-20mA source current to 4-20mA loop current converter» |
| Description | Figure 2 |
| File Format / Size | PDF / 10 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «A 0-20mA source current to 4-20mA loop current converter»
- Figure 1. A 0 to 20 mA current source to a 4 to 20 mA loop current converter module circuit. The RSPAN & RZERO potentiometers can be multiturn PCB mountable types for precision adjustment. Q1 should have a heatsink
- Figure 2. A block diagram that shows the connection of the current converter in process industries
