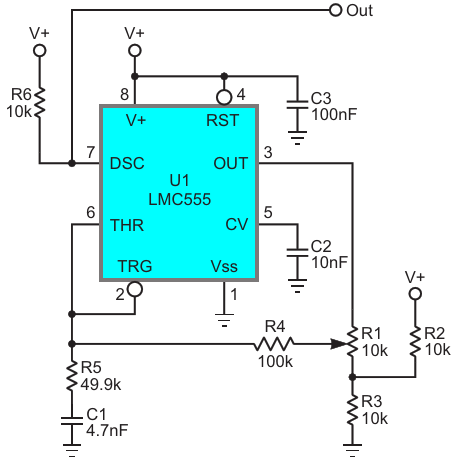

R1 sets U1 frequency from < 10 Hz to > 100 kHz
| Authors | Stephen Woodward |
| Main Document | Article «Tune 555 frequency over 4 decades» |
| Description | Figure 1 |
| File Format / Size | PDF / 13 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Tune 555 frequency over 4 decades»
- Figure 1. R1 sets U1 frequency from < 10 Hz to > 100 kHz
- Figure 2. U1 oscillation range vs R1 setting is so wide it needs a log scale to accommodate it
- Figure 3. Reasonably good log conformity is seen over mid-80% of R1's travel
