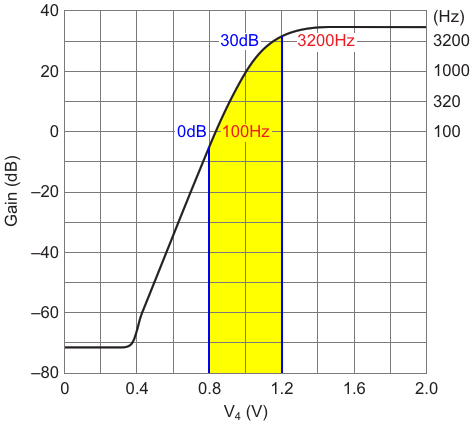

VC's 0 to 2 V antilog gain control span programs A1 pin 4 from 0.8 V to 1.2 V for 1x to 32x gain and FOSC = 100 HzA1gain = 100 Hz(5.66Vc) = 100 to 3200 Hz
| Authors | Stephen Woodward |
| Main Document | Article «5 octave linear(ish)-in-pitch power VCO» |
| Description | Figure 4 |
| File Format / Size | PDF / 8 Kb |
| Document Language | English |
