R4C2 = T_D = 212 ns = nonlinearity compensation for 555 internal delays

Download PDF

Other Materials from the Main Document

• Article «1 MHz 555 VFC»
• Figure 1. Starred components are precision, including the +5 V supply, but something's missing
• Figure 2. Nonlinear red curve versus ideal black shows ~20% linearity error from LMC555 internal delays
• Figure 3. R4C2 = T_D = 212 ns = nonlinearity compensation for 555 internal delays

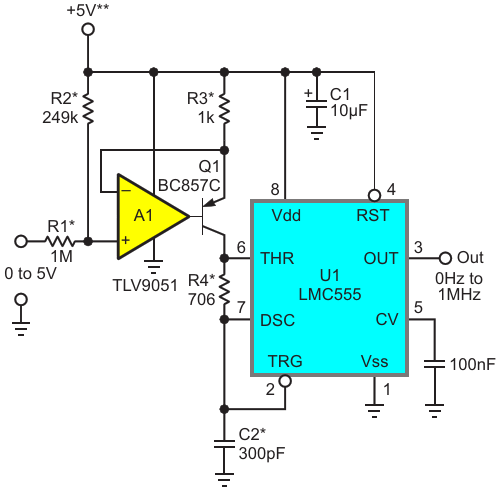

• Figure 4. Nonlinearity disappears if R4 = T_D/C2 = 212 нс/300 пФ = 706 Ом
