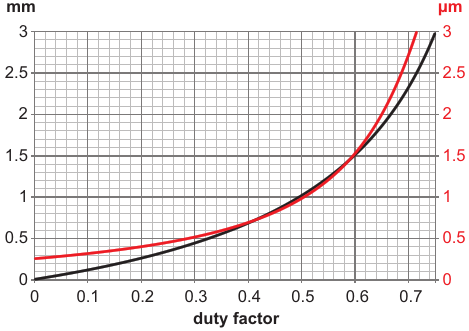

This graph shows the sensor performance when OUT is connected to a 12 bit ADC using +5 V for its reference. The black curve (left axis) equals the plate separation (d) in millimeters. The red curve (right axis) equals the ADC lsb resolution in micrometers

Download PDF

Other Materials from the Main Document

• Article «Capacitive position sensor with linearized output»
• Figure 1. The U1a and U1b cross-coupled Schmidt trigger timers form a ~1 MHz RC multivibrator. The T_SENSE pulse width is inversely proportional to sensor displacement
• Figure 2. Passive RC averaging of the T_SENSE output yields the analog position output
• Figure 3. This graph shows the sensor performance when OUT is connected to a 12 bit ADC using +5 V for its reference. The black curve (left axis) equals the plate separation (d) in millimeters. The red curve (right axis) equals the ADC lsb resolution in micrometers
• Figure 4. Averaging integrator A1 linearizes the displacement sensing response. R5 is shown as a precision type, albeit just out of force of habit. It, like the ON resistances of U2's switches, actually cancels out
• Figure 5. In this graph of the enhanced circuit results, the black curve equates to the sensor readout d in mm, with red at a constant 1 mV per micron resolution
