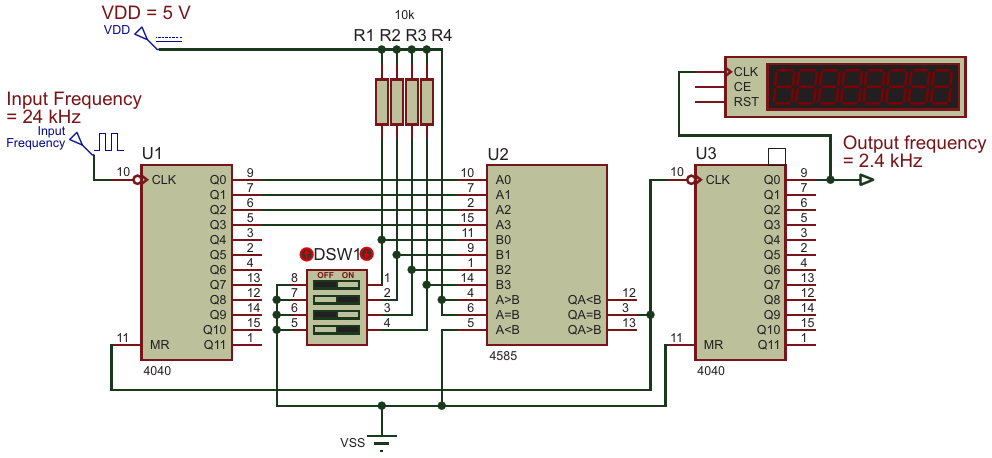

This circuit divides the input frequency by 10. The output is a 2.4 kHz square wave with a 50% duty cycle. The ICs' power supply and ground pins are not shown. For division by other numbers, change the DIP switch (DSW1) setting: OFF=1, ON=0
| Authors | Jayapal Ramalingam |
| Main Document | Article «Frequency division by any number, with a 50% duty cycle output» |
| Description | Figure 1 |
| File Format / Size | PDF / 20 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Frequency division by any number, with a 50% duty cycle output»
- Figure 1. This circuit divides the input frequency by 10. The output is a 2.4 kHz square wave with a 50% duty cycle. The ICs' power supply and ground pins are not shown. For division by other numbers, change the DIP switch (DSW1) setting: OFF=1, ON=0
