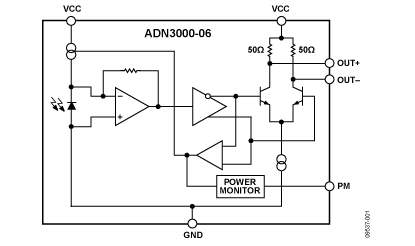

The Analog Devices' ADN3000-06 is a complete high speed optical receiver featuring a proprietary large-area germanium PIN photodiode integrated with a transimpedance amplifier (TIA). The integration of the photodiode eliminates bond wires between the diode and TIA that provides guaranteed performance and improved manufacturing reliability. The ADN3000-06 supports data rates of up to 6.5 Gbps for telecommunication and point-to-point LAN applications, and a wide range of operating wavelengths from 830 nm to 1560 nm.
The ADN3000-06 also features an optical average power moni-toring circuit that generates a voltage output proportional to the average photodiode current.
Typical power consumption of ADN3000-06 is 65 mW from a single 3.3 V supply. In saturated output, the signal has a typical differential amplitude of 240 mV p-p.
The ADN3000-06 is available in die form, and it is operational over the extended industrial temperature range of −40°C to +85°C.
Applications
- Optical receivers up to 6.5 Gbps
- 6G CPRI, OBSAI, and 8G short range and LTE receivers
- Receiver optical subassemblies (ROSA)
Features
- Integrated photodiode + TIA
- Differential responsivity: 5.5 mV/μW
- 50 μm diameter germanium photodiode
- Input sensitivity −19.5 dBm @ 6.144 Gbps
- Wavelength range:
- 830 nm to 1560 nm
- Single 3.3 V supply
- Power dissipation: 65 mW
- Differential output swing: 240 mV p-p
- On-chip power monitor function
- Die size: 0.835 mm × 0.675 mm
