Microchip's New Family of High-Speed CAN Transceivers Are Low Power and Highly Robust

Microchip MCP2561 MCP2562

MCP2561/2 Transceivers Meet the Stringent EMC Requirements of Global Automotive OEMs

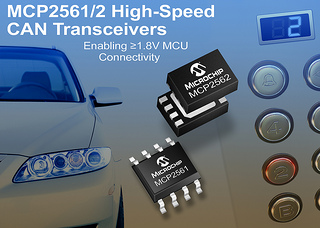

Microchip Technology Inc. announced a new family of High-Speed (HS) CAN transceivers, the MCP2561/2.  These new devices serve as an interface between a CAN protocol controller and the physical two-wire CAN bus.  The new family of transceivers meet CAN specification requirement “GIFT ICT Group Conformance Test Specification V1.0” as verified by C&S Group GmbH in addition to other global automotive Electromagnetic Compatibility (EMC) requirements such as “Hardware Requirements for LIN, CAN and FlexRay Interfaces in Automotive Applications,” Version 1.3, May 2012 as verified by IBEE.  Customers can have confidence in CAN conformance and high robustness increasing ease of development and system reliability.

Microchip Technology Inc. announced a new family of High-Speed (HS) CAN transceivers, the MCP2561/2

The new family of MCP2561/2 transceivers provides two device options.  The MCP2561 is an HS CAN transceiver in an 8-pin package and features a SPLIT pin.  The SPLIT pin helps to stabilize common mode in biased split termination schemes.  The MCP2562 is also an HS CAN transceiver available in an 8-pin package and features a Vio pin.  The Vio pin can be tied to a secondary supply in order to internally level shift the CAN transceiver digital I/Os for easy microcontroller interfacing.  This is beneficial when a system is using a microcontroller at a Vdd less than 5V (for example, 1.8V or 3.3V) and eliminates the need for an external level translator decreasing system costs and complexities.

The transceivers have an industry low standby current consumption (<5 µA typical) helping meet automotive Electronic Control Unit (ECU) low-power budget requirements.  Both parts are also available in 8-lead PDIP, SOIC and 3x3 mm DFN (leadless) package types allowing for development flexibility and offering alternatives for space limited application boards.  Additionally, the devices support both Extended (E): −40°C to +125°C and High (H): −40°C to +150°C temperature ranges providing customers the ability to use one part across various CAN connected applications.

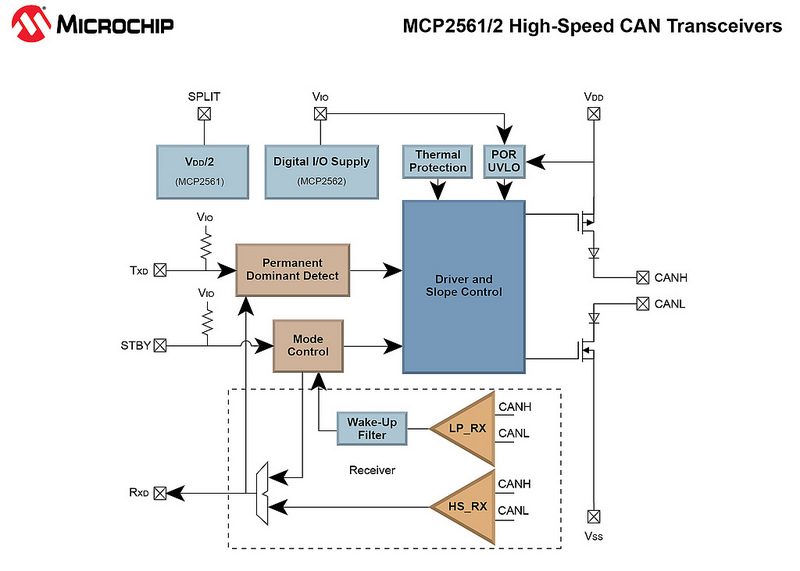

MCP2561, MCP2562 Block Diagram
Click to enlarge

Features

  • Supports 1 Mb/s operation
  • Implements ISO-11898-5 standard physical layerrequirements
  • Very low standby current (Typ: 5µA)
  • VIO supply pin (MCP2562) to interface directly to CAN controllers and microcontrollers with 1.8V to 5V I/O
  • SPLIT output pin (MCP2561) to stabilize common mode in biased split termination schemes
  • CAN bus pins are disconnected when device is unpowered. An unpowered node or brown-out event will not load the CAN bus
  • Detection of ground fault; Permanent dominant detection on TXD, Permanent dominant detection on bus
  • Power-on Reset and voltage brown-out protectionon VDD and VIO pin
  • Protection against damage due to short-circuitconditions (positive or negative battery voltage)
  • Protection against high-voltage transients in automotive environments
  • Automatic Thermal Shutdown protection
  • Suitable for 12V and 24V systems
  • Up to 112 nodes can be connected
  • High-noise immunity due to differential bus implementation
  • High ESD protection on CANH and CANL, IEC61000-4-2 > 8kV
  • Available in PDIP-8L, SOIC-8L and 3x3 DFN-8L.
  • Temperature ranges: Extended (E): -40°C to +125°C, High (H): -40°C to +150°C

The MCP2561/2 CAN transceivers are well suited for a wide range of applications in the automotive market including power train, body and convenience, diagnostics, safety and security and the industrial market, including manufacturing, construction and agriculture, among others.

Pricing & Availability

The MCP2561 transceivers are available now for sampling and volume production in 8-pin PDIP, SOIC, DFN 3 mm x 3 mm packages starting at $0.63 each, in 10,000-unit quantities.  The MCP2562 transceivers are available now for sampling and volume production in 8-pin PDIP, SOIC, DFN 3 mm x 3 mm packages starting at $0.63 each, in 10,000-unit quantities.

Features

    Supports 1 Mb/s operation
    Implements ISO-11898-5 standard physical layerrequirements
    Very low standby current (Typ: 5µA)
    VIO supply pin (MCP2562) to interface directly to CAN controllers and microcontrollers with 1.8V to 5V I/O
    SPLIT output pin (MCP2561) to stabilize common mode in biased split termination schemes
    CAN bus pins are disconnected when device is unpowered. An unpowered node or brown-out event will not load the CAN bus
    Detection of ground fault; Permanent dominant detection on TXD, Permanent dominant detection on bus
    Power-on Reset and voltage brown-out protectionon VDD and VIO pin
    Protection against damage due to short-circuitconditions (positive or negative battery voltage)
    Protection against high-voltage transients in automotive environments
    Automatic Thermal Shutdown protection
    Suitable for 12V and 24V systems
    Up to 112 nodes can be connected
    High-noise immunity due to differential bus implementation
    High ESD protection on CANH and CANL, IEC61000-4-2 > 8kV
    Available in PDIP-8L, SOIC-8L and 3x3 DFN-8L.
    Temperature ranges; Extended (E): -40°C to +125°C, High (H): -40°C to +150°C
