International Rectifier, IR introduced a new generation of energy-efficient Intelligent Power Modules (IPM). The new second generation (Gen2) family of IRAM System-In-Package (SIP) IPMs shrinks and simplifies the design of appliance motor drive applications including air conditioners, fans, compressors and washing machines.
Leveraging IR’s advanced Trench Insulated-Gate Bipolar Transistors (IGBTs) and next-generation three-phase gate driver IC, the IRAM SiP1A Gen2 modules also feature state-of-the-art thermo-mechanical technology to further improve thermal performance and system efficiency by delivering increased power density and enhanced system ruggedness and reliability. The new devices are pin-to-pin compatible with the existing IRAM SiP1A series.
The new Gen2 IRAM modules are an addition to IR’s iMOTION™ design platform which integrates digital, analog and power technologies together in a flexible, mixed signal chipset to simplify motor control designs and bring energy-efficient, cost-effective solutions to market faster.

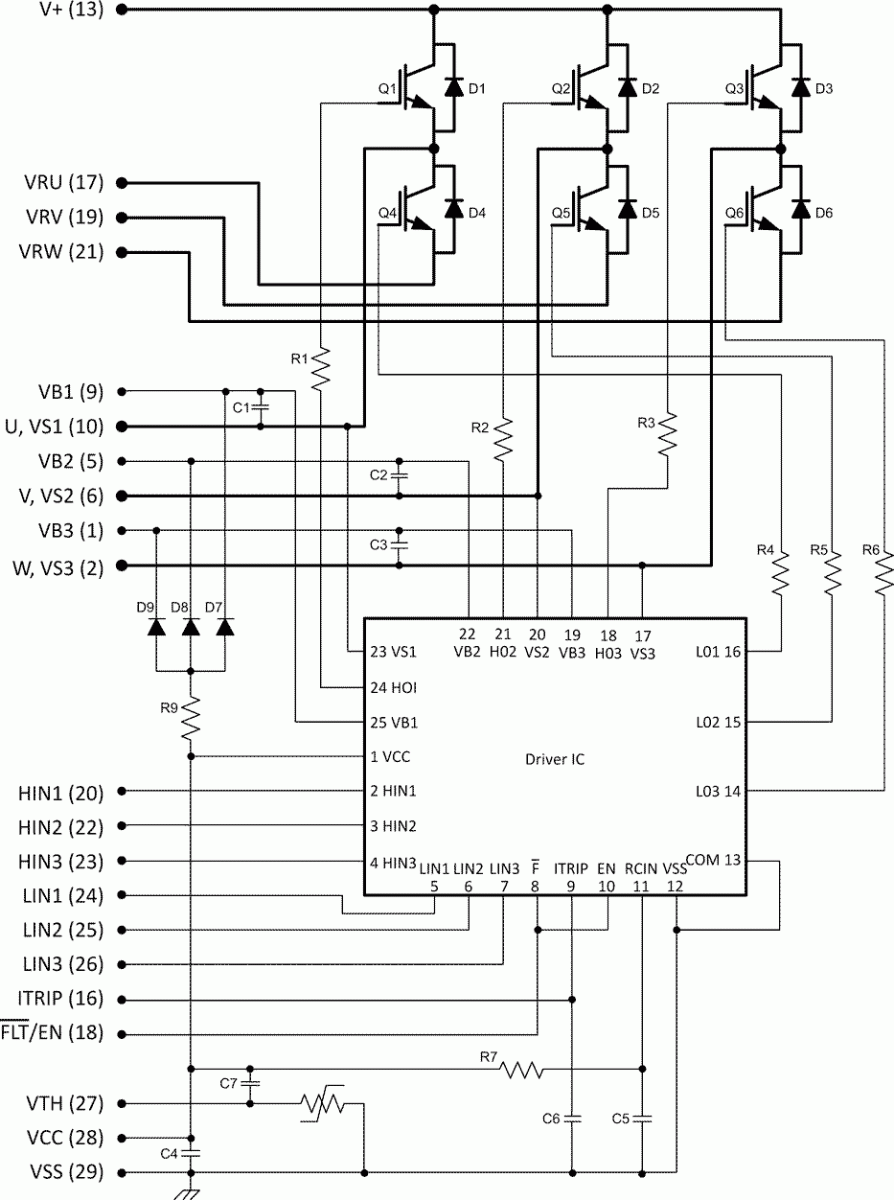

Internal Electrical Schematic – IRAM256-1067A. |
Specifications
Part Number
|
Package
|
V
|
IO (RMS)
|
FPWM
|
TJ MAX
|
Application
|
SIP1A+
|
600 V
|
10 A
|
≤ 20 KHz
|
150 °C
|
Washing Machine, A/C,
Fan, Compressor |
|
SIP1A+
|
15 A
|
150 °C
|
A/C, Fan, Pump,
Compressor |
|||
SIP1A+
|
20 A
|
150 °C
|
A/C, Fan, Pump,
Compressor |
Availability and Pricing
Pricing for the Gen2 IRAM family begins at US $5.95 each in 10,000 unit quantities. Production quantities are available immediately. Prices are subject to change.
