Precision Voltage Reference Drives Up to 200mA, Achieves 0.1ppm/mA Load Regulation & 10ppm/°C Drift

Linear Technology » LT6658

Linear Technology - LT6658Linear Technology announces the LT6658, a precision voltage reference that incorporates two high current output buffers. Based on a 2.5 V bandgap voltage reference, each output can be separately configured for any voltage between 2.5 V and 6 V. Both outputs offer 0.05% initial accuracy, 10 ppm/°C temperature drift and only 1.5 ppm of low frequency noise. The outputs can drive up to 50 mA and 150 mA, respectively, and sink up to 20 mA. Typical load regulation is only 0.1 ppm/mA with up to 150 mA of load current. In parallel, the buffer outputs can be combined for even higher current capability.

Linear Technology - LT6658

The LT6658 is ideal for driving the reference input for a high resolution ADC or DAC using one output, while simultaneously supplying power to other devices using the second output. Both outputs track each other over temperature and load, allowing them to address applications requiring ratiometric supply rails. The outputs have excellent supply rejection and are stable with up to 50 μF over the entire specified operating range. With this output capability, the LT6658 can serve as both reference and regulator combined. Alternatively, the LT6658 can be used to generate a reference plus a virtual ground, or as two matched, tracking references.

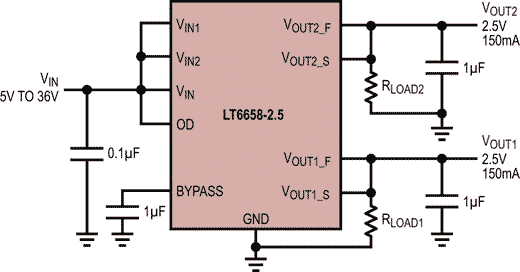

Typical Application
Typical Application.

The LT6658 is currently available in a 2.5 V version. Options for 1.2 V, 1.8 V, 3 V, 3.3 V, and 5 V will be available in the first half of 2017. Prices start at $2.35 each in 1,000-piece quantities.

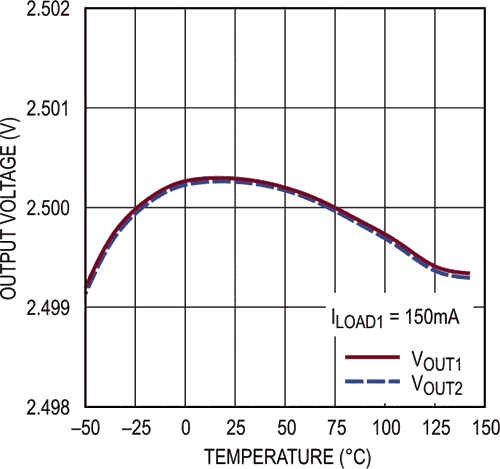

Output Voltage Temperature Drift Both Outputs
Output Voltage Temperature Drift Both Outputs.

Summary of Features: LT6658

  • Excellent Accuracy & Drift:
    • A-Grade (0.05% Initial Accuracy, 10 ppm/°C Drift)
    • B-Grade (0.1% Initial Accuracy, 20 ppm/°C Drift)
  • Dual Output Tracking Reference
  • Each Output Configurable: 2.5 V to 6 V
    • Output 1: 150 mA Source/20 mA Sink
    • Output 2: 50 mA Source/20 mA Sink
  • Low Noise: 1.5 ppmP-P (0.1 Hz to 10 Hz)
  • Wide Operating Voltage Range to 36 V
  • Load Regulation: 0.1 ppm/mA
  • AC PSRR: 96 dB at 10 kHz
  • Kelvin Sense Connection on Outputs
  • Thermal Shutdown
  • Separate Supply Pins for Each Output
  • 2.5 V Voltage Option Available Now
    • Soon to be Released: 1.2 V, 1.8 V, 3 V, 3.3 V & 5 V
  • Available in Exposed Pad Package MSE16
