DC-DC Buck Converters from Diodes Incorporated Enable Best-In-Class EMI Performance with Ultra-Low Quiescent Current

Diodes AP63200 AP63201 AP63203 AP63205

Diodes Incorporated announced the AP63200/AP63201/AP63203/AP63205 2 A synchronous DC-DC buck converters, delivering class-leading EMI performance across a range of input and output voltages. These devices are well-suited for a number of applications, including home appliances and industrial electronics, as well as telecommunications, power tools, office equipment and consumer products such as TVs and STBs.

Diodes - AP63200, AP63201, AP63203, AP63205

Switching DC-DC converters can typically introduce significant EMI to a design. However, the AP63200/AP63201/AP63203/AP63205 employ a frequency spread spectrum (FSS) technique with a switching frequency jitter of ±6%, and proprietary gate driver technology to enable the industry’s best-in-class EMI performance. This design supports single layer layout and can remove the need for vias to further reduce EMI. Further improvements are achieved through the proprietary gate driver design, which reduces switching node ringing without sacrificing MOSFET turn-on and turn-off times.

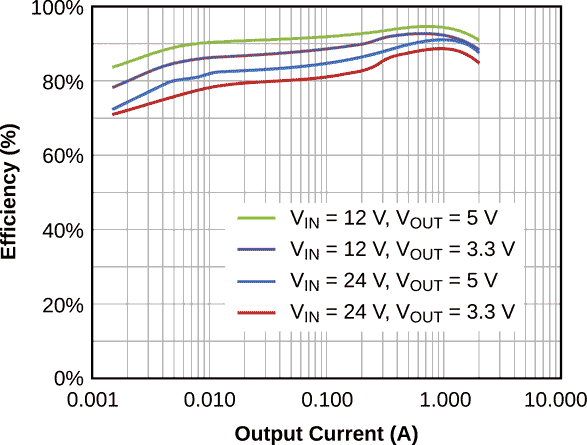

Efficiency vs. Output Current
Efficiency vs. Output Current.

The fully integrated devices feature high-side and low-side MOSFETs with very low on-resistance, RDS(ON), complemented by Diodes’ proprietary gate driver technology and compensation network. By employing pulse frequency modulation (PFM), the AP63200/AP63201/AP63203/AP63205 deliver excellent efficiencies of up to 88% under light-load conditions (5 mA output current), and a quiescent current as low as 22 µA.

The wide input voltage range of between 3.8 V to 32 V supports a variable output voltage of between 0.8 V to VIN (AP63200/AP63201), or fixed output voltages of 3.3 V (AP63203) or 5 V (AP63205). All devices can deliver a maximum continuous output current of 2 A. The AP63200/AP63201 devices can also operate as an LDO regulator by employing a duty cycle of 100%, providing a stable output voltage to within 1% of an unregulated input voltage. All of the devices have been designed to withstand input voltage surges of up to 40 V for 400 ms.

All products are available in the TSOT26 package.
