Analog Devices introduced Low IQ  Synchronous Boost Controller

Analog Devices LTC7804

Analog Devices introduced the LTC7804, a high performance synchronous boost DC/DC switching regulator controller that drives an all N-channel power MOSFET stage. Synchronous rectification increases efficiency, reduces power losses and eases thermal requirements. A constant frequency current mode architecture allows a phase-lockable switching frequency of up to 3 MHz. The LTC7804 operates from a wide 4.5 V to 40 V input supply range. When biased from the boost converter output , the LTC7804 can operate from an input supply as low as 1 V after startup.

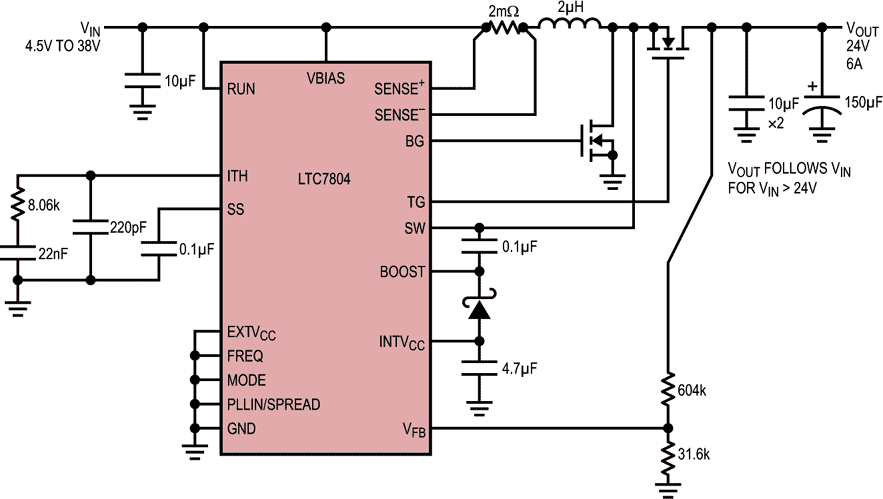

Typical Application
Typical Application.

The very low no-load quiescent current extends operating runtime in battery powered systems. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous inductor current mode at light loads.

The LTC7804 additionally features spread spectrum operation which significantly reduces the peak radiated and conducted noise on both the input and output supplies, making it easier to comply with electromagnetic interference (EMI) standards.

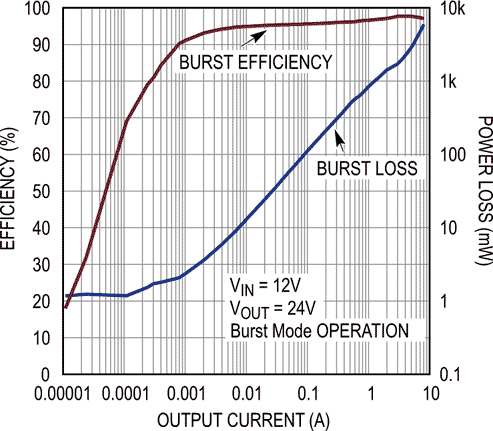

Efficiency and Power Loss vs Output Current
Efficiency and Power Loss vs Output Current.

Features

  • Synchronous Operation for Highest Efficiency and Reduced Heat Dissipation
  • Wide VIN Range: 4.5 V to 40 V and Operates Down to 1 V After Start-Up
  • Output Voltage Up to 40 V
  • Low Operating IQ: 14 μA
  • Spread Spectrum Operation
  • Pass-Thru/100% Duty Cycle Capability for Synchronous MOSFET
  • RSENSE or Inductor DCR Current Sensing
  • Programmable Fixed Frequency (100 kHz to 3 MHz)
  • Phase-Lockable Frequency (100 kHz to 3 MHz)
  • Selectable Continuous, Pulse-Skipping, or Low Ripple Burst Mode® Operation at Light Loads
  • Low Shutdown IQ: 1.2 μA
  • Thermally Enhanced 16-Pin 3 mm × 3 mm QFN and MSOP Packages

Applications

  • Automotive and Transportation
  • Industrial
  • Military/Avionics
  • Telecommunications
