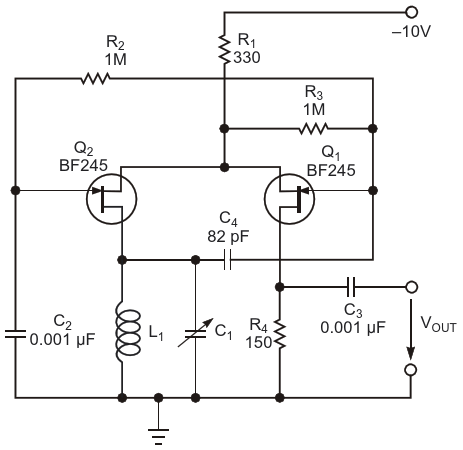

The completed oscillator circuit features a minimal component count
| Authors | Julius Foit |
| Main Document | Article «LC Oscillator has Stable Amplitude» |
| Description | Figure 5 |
| File Format / Size | PDF / 22 Kb |
| Document Language | English |
