Discovery of the peak power point for the Solec S-70C PV device
| Authors | John Dunn |
| Main Document | Article «Peak power point» |
| Description | Figure 8 |
| File Format / Size | PDF / 13 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Peak power point»
- Figure 1. The load voltage versus cell and load current for a circuit where the voltage source is in series with some source resistance feeding power to a variable load
- Figure 2. Power to the load (load voltage × load current) versus cell and load current
- Figure 3. Adding a specific numerical value for the source resistance
- Figure 4. Discovery of the peak power point by finding the equality between the load resistance to the source resistance
- Figure 5. Solec S-70C PV panel power curve while facing the sun
- Figure 6. A numerical representation of the PV device shown in Figure 5
- Figure 7. Current, power and dynamic resistance curves for the Solec S-70C PV device. The dynamic resistance of the PV here is no longer the static horizontal line we saw in Figure 3

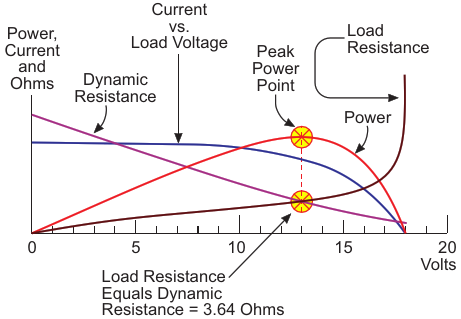

- Figure 8. Discovery of the peak power point for the Solec S-70C PV device
