A 10-position switch with only one active high output at a time, and a DAC are shown
| Authors | Christopher Paul |
| Main Document | Article «Elaborations of yet another Flip-On Flop-Off circuit» |
| Description | Figure 2 |
| File Format / Size | PDF / 21 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Elaborations of yet another Flip-On Flop-Off circuit»
- Figure 1. U1 is a Schmitt inverter and U2 a D-type flip-flop. The diodes are small-signal Schottky types. The pushbutton is normally open. See the text for a discussion of resistor and capacitor values

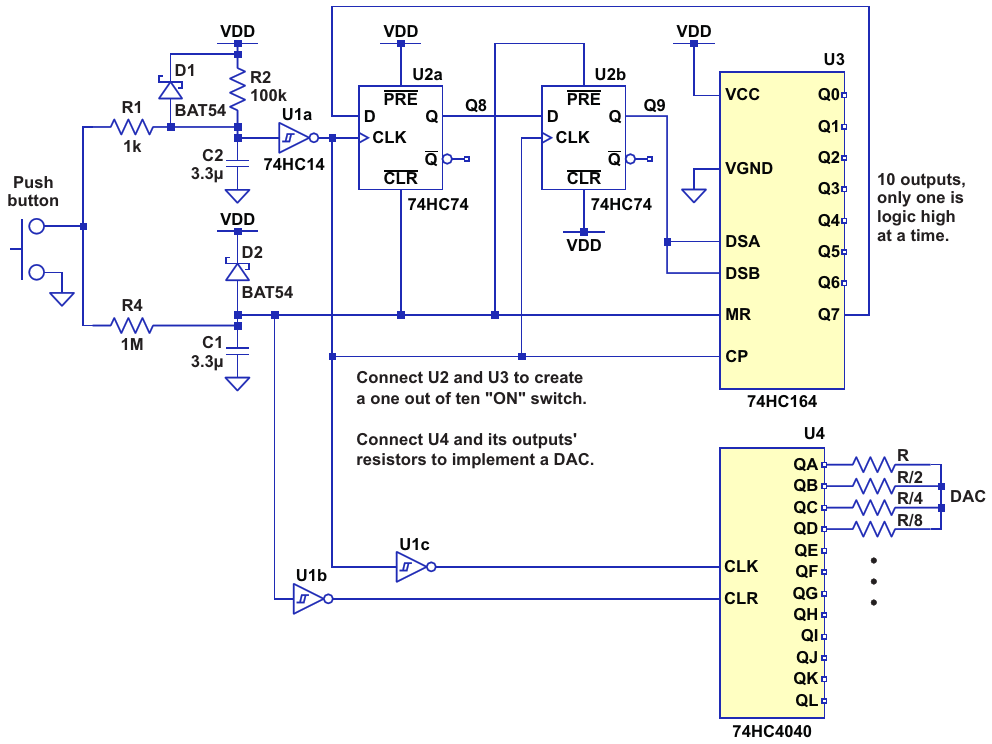

- Figure 2. A 10-position switch with only one active high output at a time, and a DAC are shown
