Basic PWM regulator programming topology

Authors	Stephen Woodward
Main Document	Article «Accuracy loss from PWM sub-Vsense regulator programming»
Description	Figure 1
File Format / Size	PDF / 14 Kb
Document Language	English

Other Materials from the Main Document

Article «Accuracy loss from PWM sub-Vsense regulator programming»

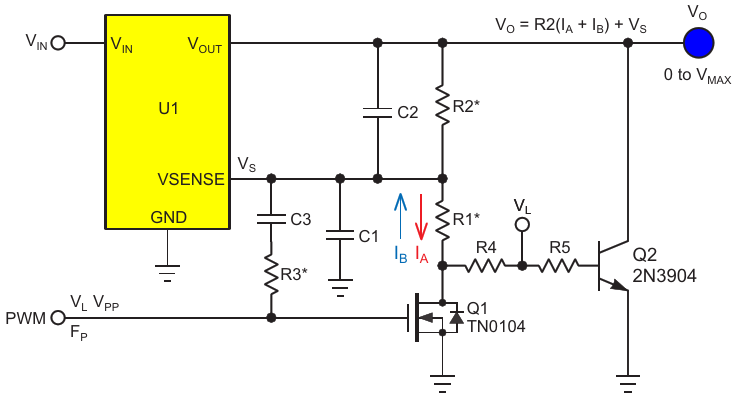

Figure 1. Basic PWM regulator programming topology
Figure 2. Putting some meat on Figure 1's bare bones, adding example values to work with
Figure 3. V_OUT error plots where the x-axis is D and y-axis is V_OUT error. Black line is V_OUT = V_S at D = 0 and red line is V_OUT = 0 at D = 0
