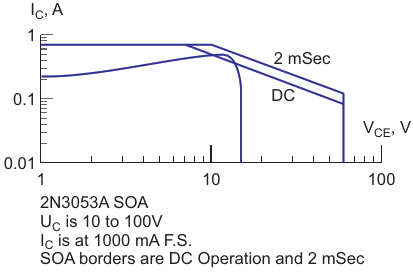

SOA examination using logarithmic scaling
| Authors | John Dunn |
| Main Document | Article «Safe operating area» |
| Description | Figure 4 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
