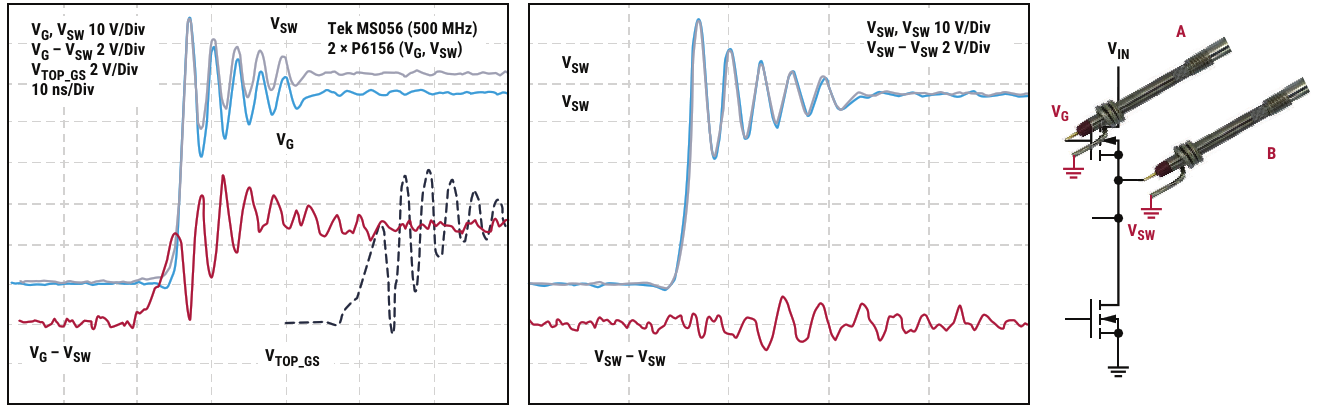

TOP FET gate measurement (VG - VSW) using A - B method
| Authors | Kurk Mathews, Luis Onofre Lazaro |
| Main Document | Article «Low voltage GaN converter gate drive and measurement» |
| Description | Figure 5 |
| File Format / Size | PDF / 53 Kb |
| Document Language | English |
