This T1 digital telephony frame illustrates TDM and TDMA. Each time slot is allocated to one user. The high data rate makes the user unaware of the lack of simultaneity

Download PDF

Other Materials from the Main Document

• Article «Fundamentals of communications access technologies: FDMA, TDMA, CDMA, OFDMA, AND SDMA»
• Figure 1. FDMA divides the shared medium bandwidth into individual channels. Subcarriers modulated by the information to be transmitted occupy each subchannel

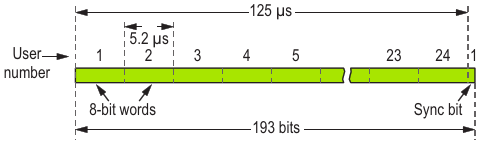

• Figure 2. This T1 digital telephony frame illustrates TDM and TDMA. Each time slot is allocated to one user. The high data rate makes the user unaware of the lack of simultaneity
• Figure 3. This GSM digital cellular method shows how up to eight users can share a 200-kHz channel in different time slots within a frame of 1248 bits
• Figure 4. Spread spectrum is the technique of CDMA. The compressed and digitized voice signal is processed in an XOR logic circuit along with a higher-frequency coded chipping signal. The result is that the digital voice is spread over a much wider bandwidth that c
• Figure 5. OFDMA assigns a group of subcarriers to each user. The subcarriers are part of the large number of subcarriers used to implement OFDM for LTE. The data may be voice, video, or something else, and it's assembled into time segments that are then transmitted
• Figure 6. SDMA separates users on shared frequencies by isolating them with directional antennas. Most cell sites have three antenna arrays to separate their coverage into isolated 120° sectors (a). Adaptive arrays use beamforming to pinpoint desired users whil
