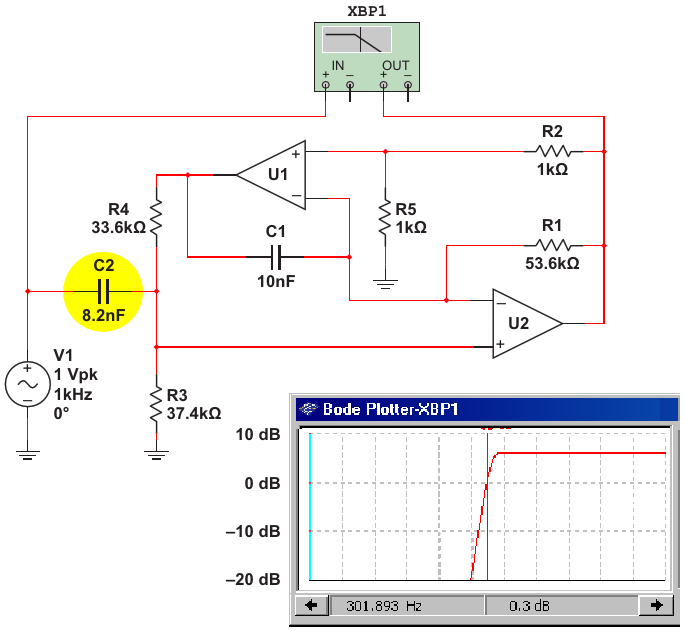

This SPICE simulation of the modified high-pass filter circuit is also absent any peaking
| Authors | John Dunn |
| Main Document | Article «Dual amplifier active filters» |
| Description | Figure 5 |
| File Format / Size | PDF / 27 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Dual amplifier active filters»
- Figure 2. This SPICE simulation of the low-pass filter circuit seemingly shows peaking
- Figure 3. This SPICE simulation of the high-pass filter circuit also seemingly shows peaking
- Figure 4. This SPICE simulation of the modified low-pass filter circuit is absent any peaking
- Figure 5. This SPICE simulation of the modified high-pass filter circuit is also absent any peaking
