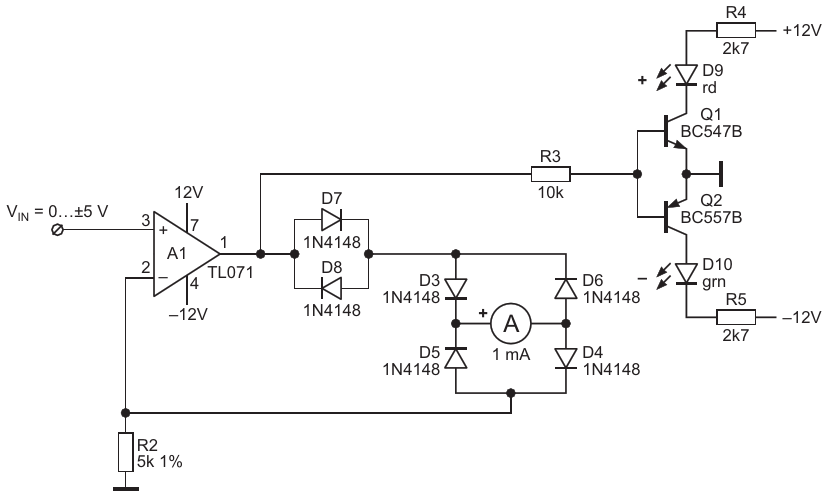

The readout circuit with sensitive polarity indication
| Authors | Cor van Rij |
| Main Document | Article «A simple circuit to let you characterize JFETs more accurately» |
| Description | Figure 5 |
| File Format / Size | PDF / 16 Kb |
| Document Language | English |
