MOSFET Gate Drivers from Diodes Incorporated Boosts Conversion Efficiency

Diodes ZXGD3009E6 ZXGD3009E6TA ZXGD3009DY ZXGD3009DYTA

Diodes Incorporated introduced a pair of compact 40 V, 1 A-rated gate drivers specifically designed to control the high-current power MOSFETs used in onboard and embedded power supplies and motor drive circuits. Enabling the MOSFETs to be more rapidly and fully switched on and off, the ZXGD3009E6 (SOT26 package) and ZXGD3009DY (SOT363 package) help minimize switching losses, improve power density and increase overall conversion efficiency.

Diodes - ZXGD3009E6, ZXGD3009DY

Acting as a high-gain buffer stage for low-power control ICs, the devices can provide a typical drive current of 500 mA from an input current of only 10 mA, ensuring the desirable fast charging and discharging of the power MOSFET’s capacitive load. The drivers’ switching capability is ultra-fast, with a propagation delay time of less than 5 ns, and rise and fall times of less than 20 ns.

Diodes - ZXGD3009

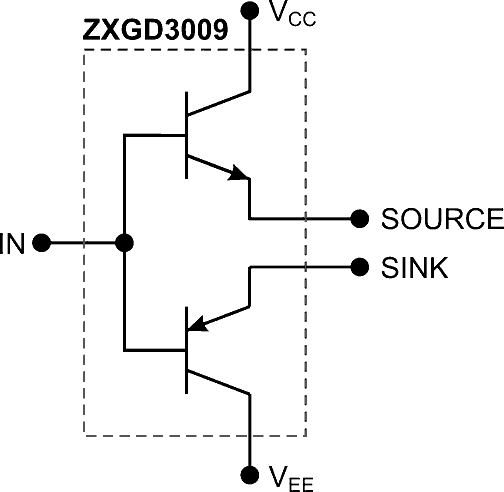

Internal Device Schematic.

Separate source and sink outputs offer independent control of MOSFET turn-on and turn-off times, which enables MOSFET behavior to be more closely tailored to the needs of the application. The ZXGD3009s’ ability to drive the gate negatively as well as positively assures dependable hard turn-off of the power MOSFET.

Diodes - ZXGD3009

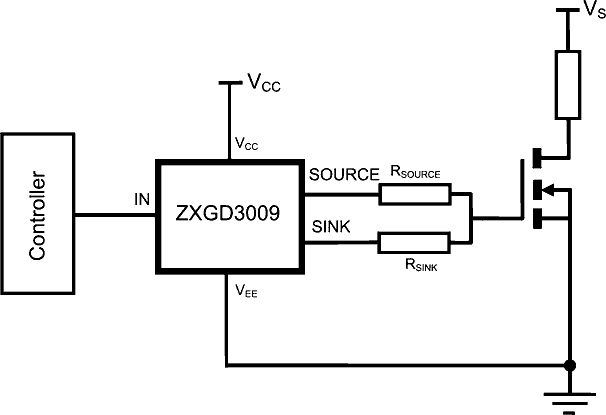

Typical Application Circuit.

The gate drivers’ rugged emitter-follower design avoids any issues of latch-up or shoot-through and can tolerate peak currents of up to 2 A. Their wide 40 V operating range will also cater for voltage spikes far beyond the typical 12 V normally associated with power MOSFET gate driving.
