Highest-precision reinforced isolated amplifier enables longest lifetimes in industrial voltage-sensing applications

Texas Instruments ISO224

TI's next-generation isolated amplifier delivers higher working voltages, longer lifetimes, more stable and accurate measurements over an extended temperature range, and reduced board space

Texas Instruments (TI) introduced a new reinforced isolated amplifier that features the industry's highest precision and working voltages, and longest lifetime reliability. With exceptional performance that includes better nonlinearity, lower offset and gain error, and higher temperature stability, the ISO224 allows engineers to overcome performance limitations and design high-precision systems.

Texas Instruments - ISO224

The new amplifier is designed for isolated voltage sensing in factory automation and control, grid infrastructure, rail transport and motor drive applications.

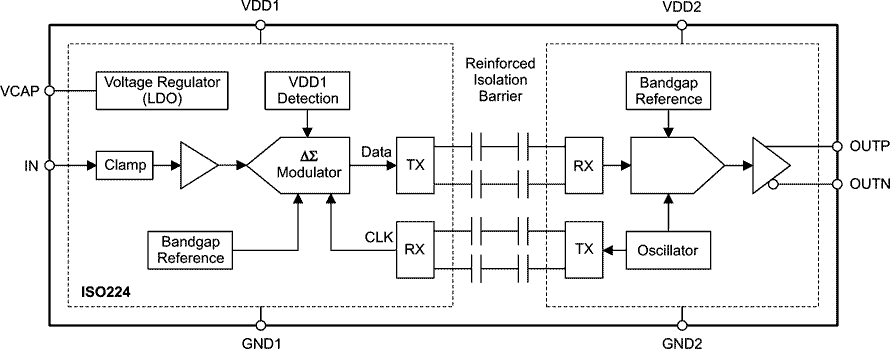

Functional Block Diagram
Functional Block Diagram.

Key features and benefits of the ISO224 reinforced isolated amplifier

  • Highest reliability:
    TI's capacitive isolation technology enables the longest lifetimes and 50 percent higher working voltages than required by isolation industry standards, common-mode transient immunity (CMTI) of up to 80 kV/µs and robust operation over an extended industrial temperature range of –55 °C to +125 °C.

  • Industry's highest performance:
    The high-precision ISO224 enables more accurate measurements of ±10-V signals, which are widely used in industrial applications, with 25 percent better nonlinearity, eight times lower gain error, lower offset drift and faster system response than similar competitive devices.

  • Small size:
    Engineers can reduce board space with the ISO224's 60 percent smaller package than the previous-generation ISO12x amplifiers as well as its output that supports direct connection to an analog-to-digital converter with 5-V input. The ISO224 also features a single, high-side supply with integrated voltage detection that simplifies the design and system-level diagnostics.

Tools and support to speed design

Designers can download the TINA-TI™ SPICE model and then simulate and analyze their circuit behavior with the ISO224 isolated amplifier by downloading the SIM TINA-TI reference design, the ISO224 TINA-TI SPICE model, or by using the ISO224 evaluation module.

ISO224 Evaluation Module
ISO224 Evaluation Module.

Package, availability and pricing

Preproduction samples of the ISO224 are available now through the TI store. The ISO224 is available in an 8-pin, 5.85-mm-by-7.5-mm small-outline integrated circuit (SOIC) package. Pricing starts at US$6.49.
